NatTable 2.7.0 - New & Noteworthy

The NatTable 2.7.0 release was made possible by several companies that provided and sponsored ideas, bug reports, discussions and new features you can find in the following sections. We would like to thank everyone involved for their commitment and support on developing the 2.7.0 release.

Almost every change in code is tracked via GitHub Issues, so if you are curious about the details and all the bugs that are fixed and enhancements that were added with the 2.7.0 release, have a look there.

There are no modifications in the NatTable RAP fragment for this release. The NatTable RAP fragment 2.6.0 works without modifications with the NatTable 2.7.0 release.

API changes

The following modifications to the API were made. Several new classes and interfaces were introduced to support new features. The details can be found in the Enhancements and new features section.

Below is the list of new classes and interfaces

• org.eclipse.nebula.widgets.nattable.filterrow.combobox.FilterRowCategoryValueMapper
• org.eclipse.nebula.widgets.nattable.layer.DefaultZoomDpiConverter

Below is the list of new constants

• CellConfigAttributes#BLEND_SELECTION_BACKGROUND
• ComboBoxFilterUtils#DEFAULT_LIST_VALUE_MAP_FUNCTION
• ICellEditDialog#DIALOG_COMMIT_EDITOR_ON_EDIT
• FilterRowConfigAttributes#CATEGORY_VALUE_MAPPER
• FilterRowConfigAttributes#FLATTEN_COLLECTION_VALUES
• FilterRowConfigAttributes#LIST_VALUE_MAP_FUNCTION
• FilterRowConfigAttributes#USE_CATEGORIES_ONLY

Below is the list of new fields

• FilterRowComboBoxDataProvider#customMapper (private)
• FilterRowComboBoxDataProvider#categoriesOnly (private)
• FilterRowComboBoxDataProvider#categoryValueMapper (private)
• FilterRowComboBoxDataProvider#flattenCollectionValues (private)

Below is the list of new methods

• BackgroundPainter#getBlendedBackgroundColour(ILayerCell, IConfigRegistry)
• ComboBoxGlazedListsFilterStrategy#getFlattenedCollectionPatternPrefix()
• ComboBoxGlazedListsFilterStrategy#getFlattenedCollectionPatternSuffix()
• GUIHelper#getAutoScaleProperty(Display)
• GUIHelper#getAutoScaleZoom(Composite parent, int zoom)
• GUIHelper#getPrimaryMonitorDpi()
• GUIHelper#getScaledFont(Font)
• GUIHelper#isRescalingAtRuntime(Display)
• GUIHelper#isSvgSupported()
• FilterRowComboBoxDataProvider#configureConfigRegistryAccess(ILayer, IConfigRegistry)
• FilterRowComboBoxDataProvider#getCategoryValueMapper(int)
• FilterRowComboBoxDataProvider#getContentFilter()
• FilterRowComboBoxDataProvider#getCustomMapper(int)
• FilterRowComboBoxDataProvider#handleCategoriesCollection(List, int)
• FilterRowComboBoxDataProvider#isCategoriesOnly(int)
• FilterRowComboBoxDataProvider#isFlattenCollectionValues(int)
• FilterRowComboBoxDataProvider#setCategoriesOnly(int, boolean)
• FilterRowComboBoxDataProvider#setCategoryValueMapper(int, FilterRowCategoryValueMapper<?>)
• FilterRowComboBoxDataProvider#setCustomMapper(int, Function<? super Object, ? extends Object>)
• FilterRowComboBoxDataProvider#setFlattenCollectionValues(int, boolean)
• FilterRowComboBoxDataProvider#sortCollection(List, int)
• NatTable#configureScaling(IDpiConverter)

Dependency Updates

We updated the dependencies to Eclipse Platform 2026-03 (4.39). The minimum required Java version of the SWT version in the Eclipse Platform 2026-03 is 21. This update is required to support monitor-specific-scaling with the new Shell#getZoom() API as described in Platform and Equinox API - 4.39. This API is not available in RAP, therefore NatTable internally tries to access that API in a way that it falls back to a default in case the API is not available. Therefore NatTable Core has a minimum required Java version of Java 17, so generally the usage with an older SWT and Java version should be possible. But the recommendation is to use a current SWT version with at least Java 21.

NatTable also updated the target platform to consume the versions of third-party-libraries provided by Eclipse Orbit Aggregation 4.39.0. Additionally we updated to Nebula Release 3.4.0. The dependency update influences the NatTable E4 Extension and the NatTable Nebula Extension, which now require Java 21 because of the transitive dependencies. NatTable Core, the NatTable GlazedLists Extension and the NatTable POI Extension still only require only Java 17 and should generally still work with older Eclipse releases.

Enhancements and new features

• Monitor-Specific Scaling

  NatTable now supports monitor-specific scaling according to the API and contracts added in Eclipse Platform 2026-03 (4.39). For this the DefaultZoomDpiConverter is introduced that uses the Shell#getZoom() method. If that method does not exist (either when using it in RAP or using an older SWT version) a default zoom factor of 100 is used.

  The GUIHelper got some new methods to be able to handle the system properties swt.autoScale and swt.autoScale.updateOnRuntime accordingly. With the default configuration and the usage of the DefaultZoomDpiConverter, NatTable should automatically scale when moving the application from one monitor to another, similar to the behavior of other SWT controls. In that turn the DefaultHorizontalDpiConverter and the DefaultVerticalDpiConverter are deprecated as they use the Display#getDPI() method, which is part of discussions for quite a while. We also added the single parameter NatTable#configureScaling(IDpiConverter) method, to make it easier to change the IDpiConverter that is used for scaling. While technically possible, there are actually no real use cases that scale differently horizontally and vertically.

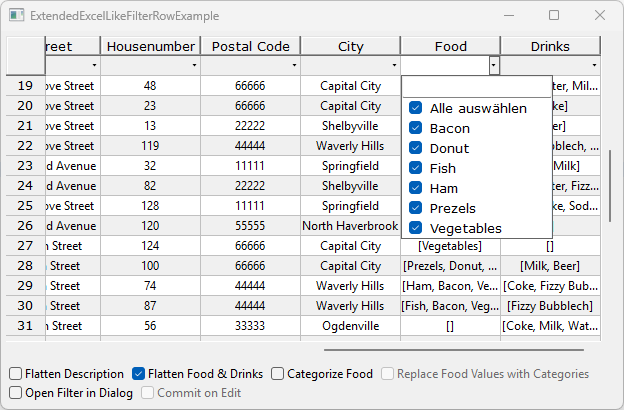

• Excel-like filter row - handling of collection values

  The implementation of the Excel-like filter row simply collects all values in a column to propagate the available values to the dropdown. In case of collection values, this results in one entry per collection value. The options in the dropdown are not squashed to single collection values by default. This behavior can now be changed.

  To configure the collection handling via ConfigRegistry, the FilterRowComboBoxDataProvider needs to be prepared to be able to access it. This can be done via FilterRowComboBoxDataProvider#configureConfigRegistryAccess(columnHeaderDataLayer, configRegistry);. With the access to the columnheader DataLayer and the ConfigRegistry the configuration attributes FilterRowConfigAttributes#LIST_VALUE_MAP_FUNCTION to specify the mapping function and FilterRowConfigAttributes#FLATTEN_COLLECTION_VALUES to enable the flattening can be used inside the FilterRowComboBoxDataProvider.

  // register a map function to convert the description values to to a
  // list
  configRegistry.registerConfigAttribute(
          FilterRowConfigAttributes.LIST_VALUE_MAP_FUNCTION,
          ComboBoxFilterUtils.DEFAULT_LIST_VALUE_MAP_FUNCTION,
          DisplayMode.NORMAL,
          LIST_VALUES);

  // register the flag to flatten the collection values in the
  // resulting filter combobox
  configRegistry.registerConfigAttribute(
          FilterRowConfigAttributes.FLATTEN_COLLECTION_VALUES,
          Boolean.TRUE,
          DisplayMode.NORMAL,
          LIST_VALUES);


  There is a default implementation of a list-value-mapping function ComboBoxFilterUtils#DEFAULT_LIST_VALUE_MAP_FUNCTION that maps a comma-separated String to a list of Strings.

  The _6037_MixedFilterRowExample was updated to show the usage and behavior of this configuration pattern in the last column Description.

  Alternatively the collection handling can be configured via FilterRowComboBoxDataProvider API. Via FilterRowComboBoxDataProvider#setCustomMapper(int, Function<? super Object, ? extends Object>) the list-value-mapping function can be configured for a specific column, via FilterRowComboBoxDataProvider#setFlattenCollectionValues(int, boolean) the collection value flattening can be enabled or disabled.

  filterRowHeaderLayer.getComboBoxDataProvider().setCustomMapper(2, ComboBoxFilterUtils.DEFAULT_LIST_VALUE_MAP_FUNCTION);
  filterRowHeaderLayer.getComboBoxDataProvider().setFlattenCollectionValues(2, true);

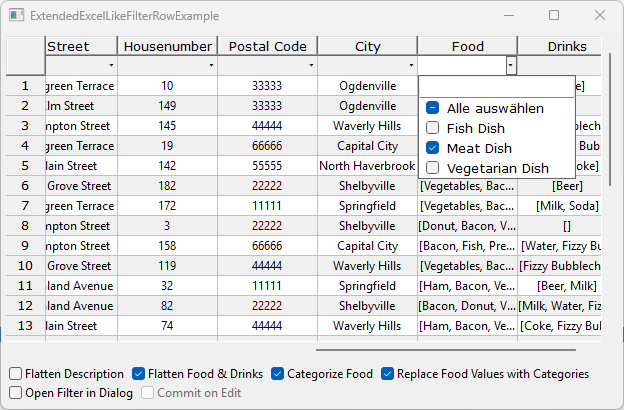

  Additionally it is possible to configure value categories, for example categorize multiple single values in the collection values to a category. This makes the filter even more comfortable if a filter for a category automatically filters for multiple values. If value categories are used, it is even possible to configure whether the categories are added on top of the dropdown options, or if the categories should replace the single values.

  Similar to the flattening it is possible to configure the categories either via ConfigRegistry or via FilterRowComboBoxDataProvider API. To configure whether categories for flattened collection values should be used, configure a FilterRowCategoryValueMapper either via FilterRowConfigAttributes#CATEGORY_VALUE_MAPPER configuration attribute or via FilterRowComboBoxDataProvider#setCategoryValueMapper(int, FilterRowCategoryValueMapper<?>) API. To configure if the categories should be added to the single values or if they should be used instead of the single values use either the configuration attribute FilterRowConfigAttributes#USE_CATEGORIES_ONLY or the FilterRowComboBoxDataProvider#setCategoriesOnly(int, boolean) API.

  private FilterRowCategoryValueMapper<String> foodCategoryMapper = new FilterRowCategoryValueMapper<String>() {
      @Override
      public List<String> valuesToCategories(List<String> values) {
          if (values == null || values.size() == 0 || !(values.get(0) instanceof String)) {
              return Collections.emptyList();
          }

          return values.stream().map(value -> {
              switch (value) {
                  case "Vegetables", "Prezels", "Donut" -> {
                      return "Vegetarian Dish";
                  }
                  case "Bacon", "Ham" -> {
                      return "Meat Dish";
                  }
                  case "Fish" -> {
                      return "Fish Dish";
                  }
              }
              return null;
          }).distinct().collect(Collectors.toList());
      }

      @Override
      public Collection<String> resolveCategories(Collection<String> valuesWithCategories) {
          return valuesWithCategories.stream().map(category -> {
              switch (category) {
                  case "Vegetarian Dish" -> {
                      return Arrays.asList("Vegetables", "Prezels", "Donut");
                  }
                  case "Meat Dish" -> {
                      return Arrays.asList("Bacon", "Ham");
                  }
                  case "Fish Dish" -> {
                      return Arrays.asList("Fish");
                  }
              }
              return Arrays.asList(category);
          }).flatMap(List::stream).distinct().collect(Collectors.toList());
      }

  };


  filterRowHeaderLayer.getComboBoxDataProvider().setCategoryValueMapper(10, this.foodCategoryMapper);
  filterRowHeaderLayer.getComboBoxDataProvider().setCategoriesOnly(10, true);


  The _6038_ExtendedExcelLikeFilterRowExample was added to show the programmatic configuration, usage and behavior of the above configuration options.

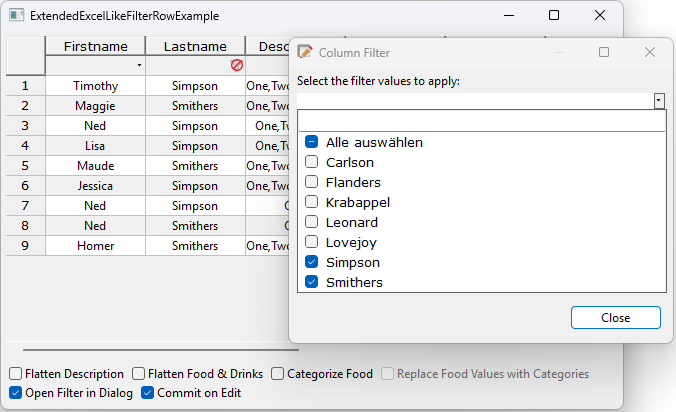

• Open the filter row cell editor in a dialog

  If the Excel-like filter row is used and a column contains a lot of different values, it might be useful to open the filter in a subdialog rather than in a dropdown inside the NatTable.

  To configure that a filter editor should be opened in a dialog, the already existing EditConfigAttributes#OPEN_IN_DIALOG configuration attribute needs to be set to true.

  configRegistry.registerConfigAttribute(
      EditConfigAttributes.OPEN_IN_DIALOG,
      Boolean.TRUE,
      DisplayMode.EDIT,
      GridRegion.FILTER_ROW);


  Whether the filter should be updated directly on editing or on confirm via OK button can be configured via the newly introduced parameter ICellEditDialog#DIALOG_COMMIT_EDITOR_ON_EDIT in the edit dialog settings.

  Map<String, Object> editDialogSettings = new HashMap<>();
  editDialogSettings.put(ICellEditDialog.DIALOG_SHELL_TITLE, "Column Filter");
  editDialogSettings.put(ICellEditDialog.DIALOG_SHELL_RESIZABLE, Boolean.TRUE);

  // add custum message
  editDialogSettings.put(ICellEditDialog.DIALOG_MESSAGE, "Select the filter values to apply:");

  // commit on edit
  editDialogSettings.put(ICellEditDialog.DIALOG_COMMIT_EDITOR_ON_EDIT, Boolean.TRUE);

  configRegistry.registerConfigAttribute(
          EditConfigAttributes.EDIT_DIALOG_SETTINGS,
          editDialogSettings,
          DisplayMode.EDIT,
          GridRegion.FILTER_ROW);


  The _6038_ExtendedExcelLikeFilterRowExample was added to show the usage and behavior of that configuration options.



• SVG Support

  Since Eclipse 2025-06 (4.36) SWT supports rendering of SVGs. As the NatTable target platform was is updated to 2026-03, NatTable does now also support the rendering of SVGs. By using SVGs for images in NatTable, the dynamic scaling in percentage mode that was introduced with NatTable 2.6.0 is more useful, as the scaling of SVGs looks better than automatically scaled PNG images.

  Internally there is a check if SVG rendering is supported at runtime, to avoid runtime errors if it is tried to load an SVG without the necessary bundles and fragments in place. If there are issues at runtime related to loading SVG images, the SVG support can be disabled by setting the newly introduced system property org.eclipse.nebula.widgets.nattable.svgSupport to false.

  The default NatTable images in SVG format were contributed by JR-1993, so internally NatTable contains the default images as SVGs and as PNGs as fallback.

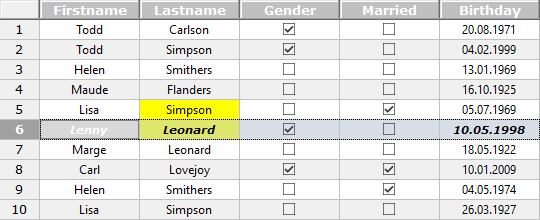

• Blended selection background

  The BackgroundPainter was extended to support blending of background colors for selected cells instead of replacing the background color of a selected cell. This makes it easier to configure the background in different conditional states, as only the conditional state for the NORMAL mode needs to be configured.

  To enable the selection blending, the new configuration attribute CellConfigAttributes#BLEND_SELECTION_BACKGROUND needs to be set to true. By default the value is false to avoid rendering side effects on updating to NatTable 2.7.0.

  configRegistry.registerConfigAttribute(
          CellConfigAttributes.BLEND_SELECTION_BACKGROUND,
          Boolean.TRUE,
          DisplayMode.NORMAL,
          GridRegion.BODY);


  The _5016_DataChangeLayerExample and the _5017_DataChangeLayerTempStorageExample were updated to show the usage and behavior of that new selection background blending.
