The Free BIRD Platform

The Free BIRD Platform is a platform that can be generated using the BIG Open Studio. It runs on the desktop using mature open source technologies, specifically The Eclipse IDE , and its plug-in architecture for creating and installing add-ons.

The Free BIRD Platform enables users to create data, execute transformations, and view transformation results and the data lineage of the calculations.

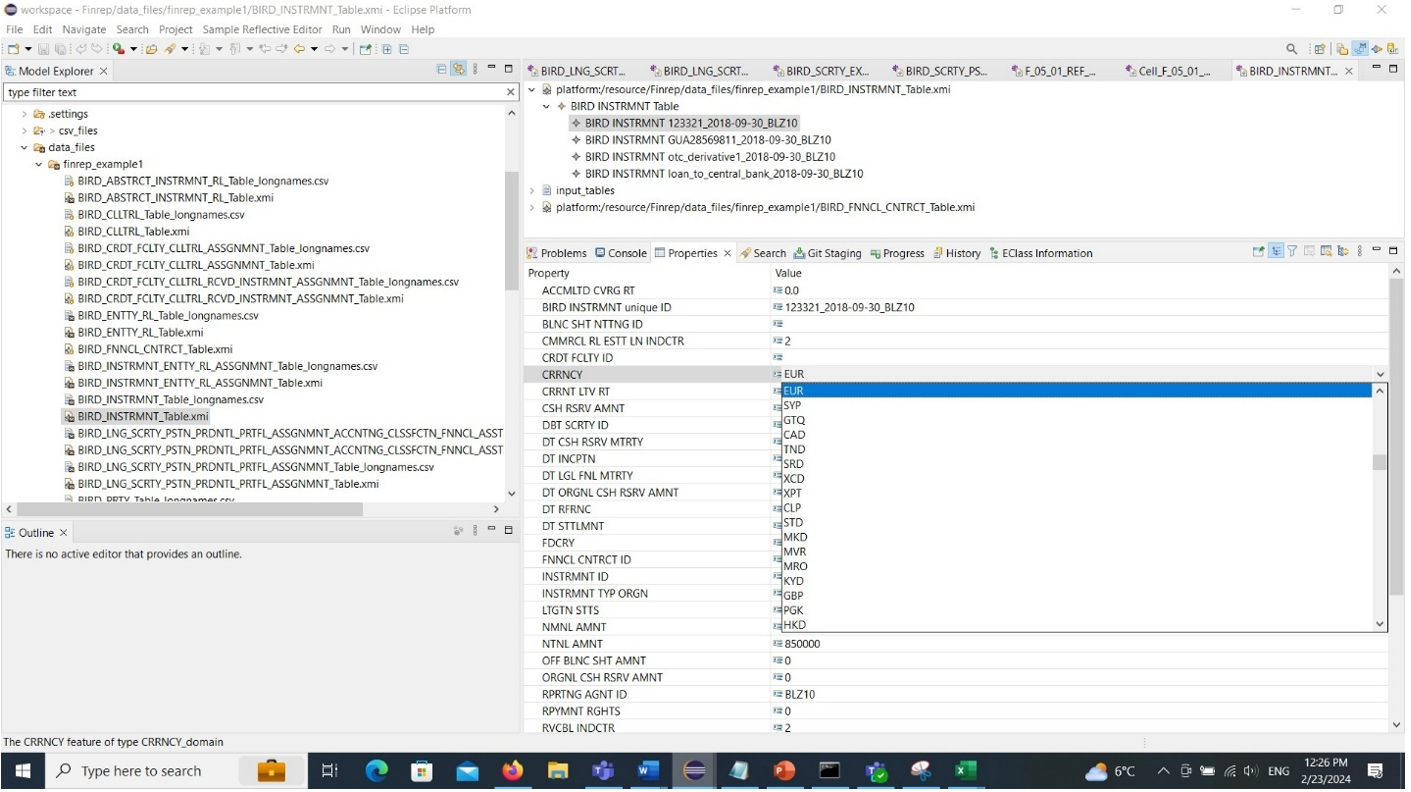

Here is an example of test data creation with BIRD aware forms:

workflow

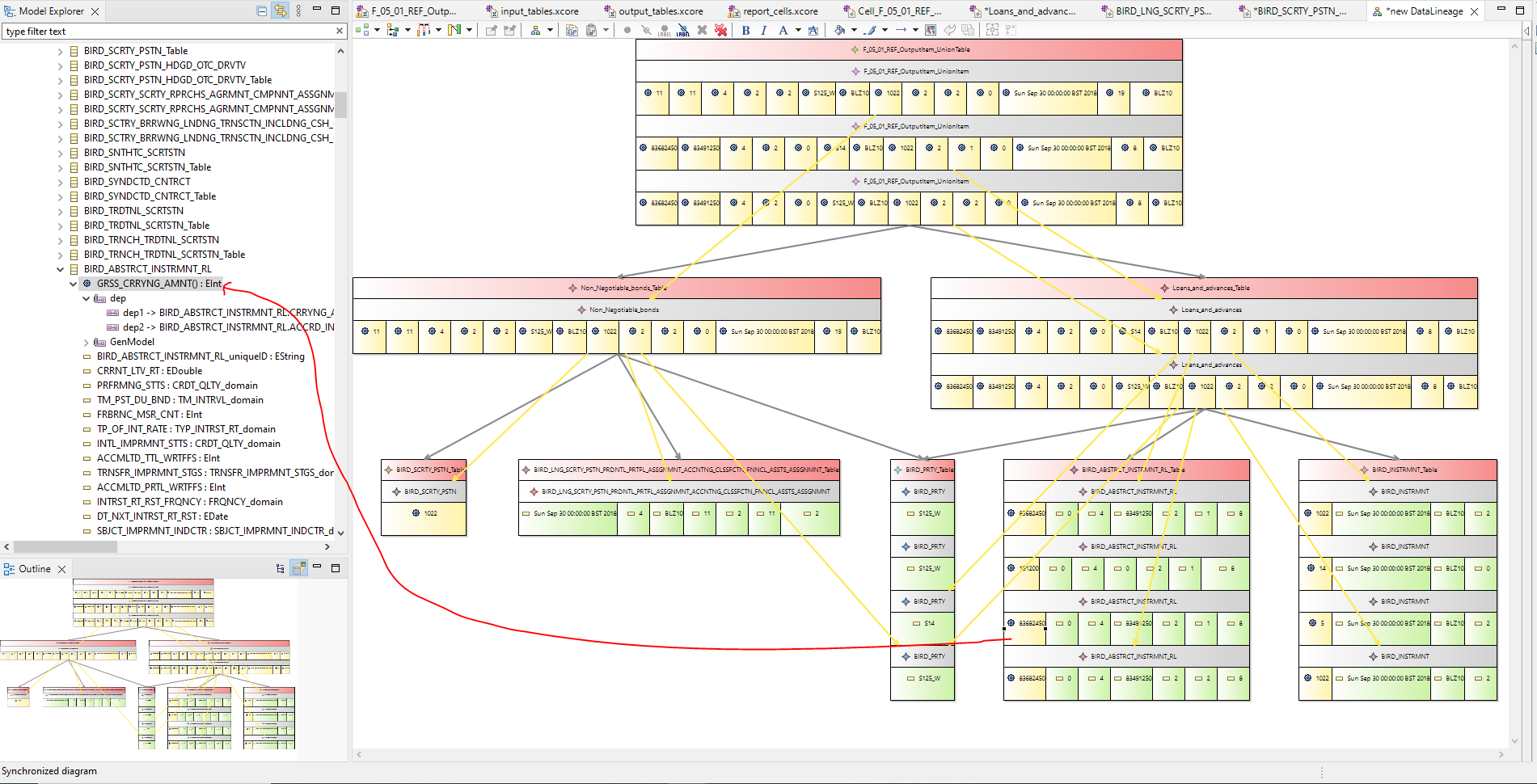

Here is an example of visualising, and interacting with, the lineage of an executed transformation:

workflow

The Free BIRD Platform is an example of a BIRDPlatform.

BIRDPlatform = BIRDSeed + Big Pot + Base Platform + Add-ons

workflow
A BIRDPlatform is a usable platform for working with data in BIRD datamodels and executing BIRD transformations to get results and lineage back to source data.

A BIRD Platform has 3 parts:
  • A mature existing extendable technical platform with existing useful add-ons and a mature well documented means to create add-ons.
  • Add-ons for the base platform, these can be custom add-ons to provide behaviour for regulatory data models and transformations, or general or existing add-ons like version control integration.
  • A representation of the BIRD datamodels and BIRD transformations created from the BIRDseed by a suitable BIG Pot. This representation will be in a form suitable for the target technical platform.
