ISO 26262 Compliance and process enhancements

A major goal of the Open Vehicel API is decreasing the development time including driving function which of course are safety relevant. So the ISO 26262 is a must to be supported.

ISO 26262 is an international standard for functional safety in automotive systems. It ensures that electrical and electronic systems in vehicles are developed with safety in mind — from concept to decommissioning.

Before we start we want to compare 2 different developments to get a common understanding

ECU Compared to Software Development

The development of an ECU (Electronic Control Unit) differs in several aspects from traditional software development, although both disciplines are increasingly converging. Here is a structured comparison:

🔧 1. Hardware vs. Software Focus

Aspect	ECU Development	Software Development
Focus	Combination of hardware and software	Pure software (mostly on standard hardware)
Dependencies	Strongly dependent on physical components (sensors, actuators)	Dependent on operating systems, frameworks, APIs

🧪 2. Testing and Validation

Aspect	ECU Development	Software Development
Test Methods	Hardware-in-the-Loop (HiL), simulation, test rigs	Unit tests, integration tests, CI/CD
Effort	Higher effort due to physical testing	More flexible through virtual setups

📋 3. Development Processes

Aspect	ECU Development	Software Development
Methodologies	V-Model, ASPICE, ISO 26262	Agile, Scrum, DevOps
Documentation	Highly regulated, extensive documentation required	Varies by industry, often lightweight

🛡️ 4. Safety Requirements

Aspect	ECU Development	Software Development
Standards	ISO 26262 (Functional Safety), AUTOSAR	OWASP, ISO/IEC 27001 (IT Security)
Criticality	Life-critical systems (e.g., brakes, airbags)	Critical depending on application (e.g., banking, medical)

🔄 5. Update and Maintainability

Aspect	ECU Development	Software Development
Updates	Increasingly possible via Over-the-Air (OTA), but complex	Easy via app stores, web deployments
Lifecycle	Long-term (10–15 years in vehicles)	Shorter (often 2–5 years)

🤝 6. Team Structure and Roles

Aspect	ECU Development	Software Development
Roles	System engineer, hardware developer, embedded programmer	Dev, DevOps, UX/UI
Collaboration	Interdisciplinary (mechanics, electronics, software)	Cross-functional

🧠 Conclusion:

ECU development is more complex and heavily regulated, as it involves safety-critical systems and hardware integration. There is a big difference to traditional software development as it is more agile and flexible, but also subject to strict regulations in safety-critical domains (e.g., medical technology, finance).

Note

So what we aim for is to get the advantages and flexibility of a general software development process to our ECU development and how Open Vehicle API is supporting this.

Improved ECU Development process

The ECU development can be heavily improved by splitting it in multiple parts, mainly extracting the software part so that

• Parts can be developed and tested independent and in parallel

• Parts can be reused

• Multiple & different parts can build up different systems to be tested independently, enhancing the test base for automated test dramatically.

• Parts can easily be tested in different systems under different environments

• The final and still required test to bring a vehicle in series production will be decreased.

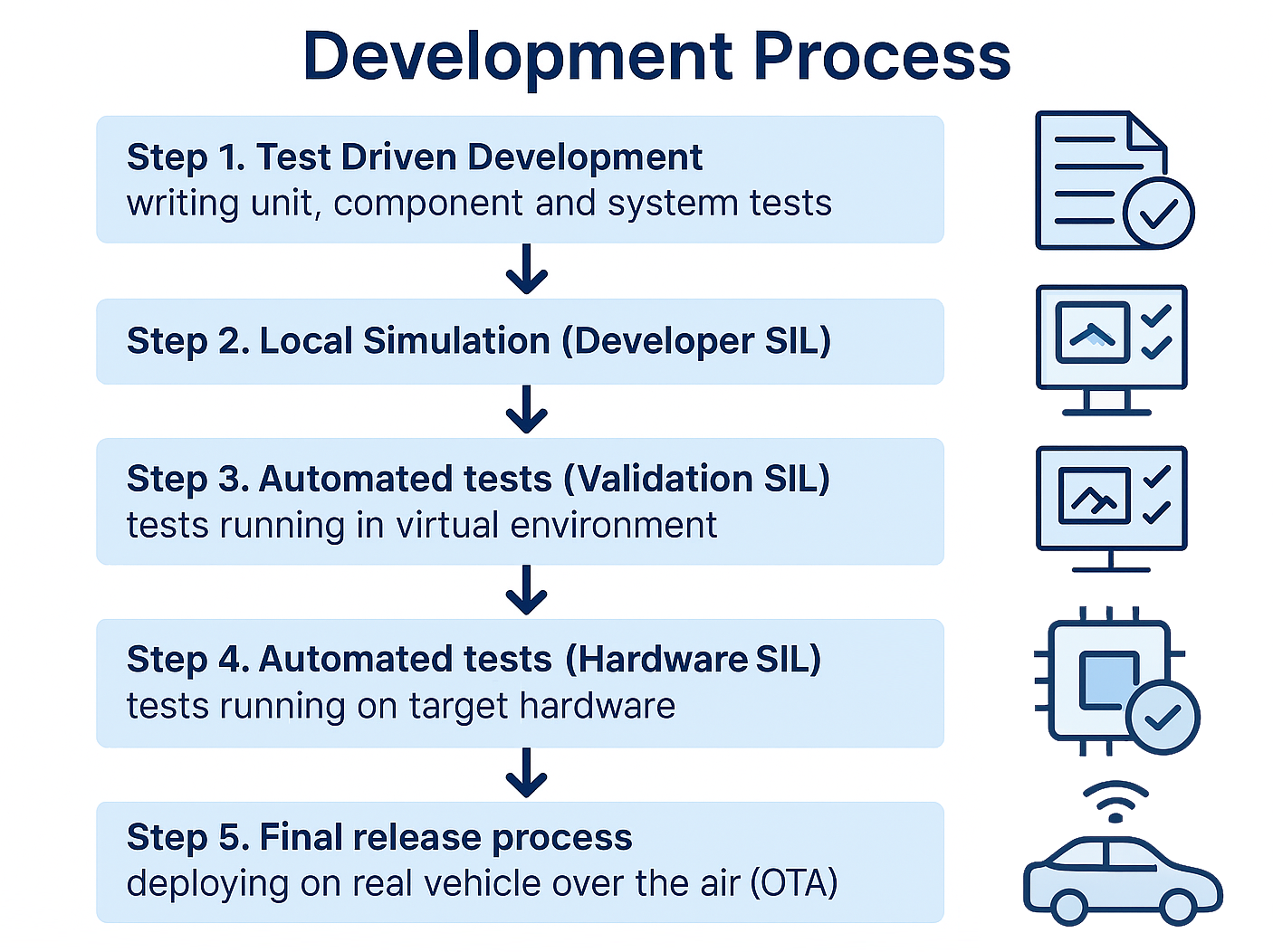

• Step 1: Local TDD

• Step 2: FMU to be used in OpenXilEnv. To include the vehicle (simulated with IPG CarMaker or Carla) another FMU is required to exchange the signal with this vehicle.

• Step 3: Run with the sdv component based on Vector SIL Kit

• Step 4: Run with the sdv component based on Vector SIL Kit

• Step 5: Run with the sdv component with real CAN socket implementation

Step 1: Test-Driven Development (TDD)

• Goal: Ensure quality from the start by writing tests before implementing features.

• Activities:

  • Write unit tests for individual functions or methods.

  • Create component tests to verify interactions between modules.

  • Develop system tests to validate end-to-end functionality.

• Outcome: A robust test suite that guides development and prevents regressions.

Step 2: Local Simulation (Developer SIL)

• Goal: Validate functionality in a controlled, local environment.

• Environment: Developer’s machine.

• Purpose: Run software in a simulated setup to catch early bugs.

• Activities:

  • Run the software in a Software-in-the-Loop (SIL) simulation on the developer’s machine.

  • Use mock data or simulated inputs to test behavior.

• Outcome: Early detection of logic or integration issues before scaling up.

Step 3: Automated Validation in Virtual Environment (Validation SIL)

• Goal: Perform scalable, automated testing.

• Environment: Virtualized system.

• Purpose: Validate software behavior across multiple scenarios.

• Activities:

  • Run pipeline which includes a virtualized test environment.

  • Run automated test suites to validate behavior across scenarios.

• Benefits: Scalable, repeatable, and fast testing.

• Outcome: Confirms software stability and correctness in a simulated system-wide context.

Step 4: Automated Validation on Hardware (Hardware SIL)

• Goal: Ensure software works on real hardware.

• Environment: Target hardware.

• Purpose: Ensure software works correctly on real devices.

• Focus: Timing, performance, and hardware integration.

• Activities:

  • Run the same automated tests on target hardware.

  • Validate timing, performance, and hardware-specific behavior.

• Outcome: Confirms software is ready for deployment in real-world conditions.

Step 5: Final Release & Over-the-Air (OTA) Deployment

• Goal: Deliver the software to the vehicle fleet.

• Activities:

  • Package and sign the release.

  • Deploy via Over-the-Air (OTA) updates to vehicles.

  • Install/Uninstall service/application.

  • Validate system, undo system changes in case of errors.

  • Monitor deployment and installation and collect feedback.

• Outcome: Software is live in production, ready for use by end users.

ISO 26262 Compliance

What is ISO 26262?

As mentioned before, ISO 26262 is an international standard for functional safety in automotive systems. It ensures that electrical and electronic systems in vehicles are developed with safety in mind — from concept to decommissioning.

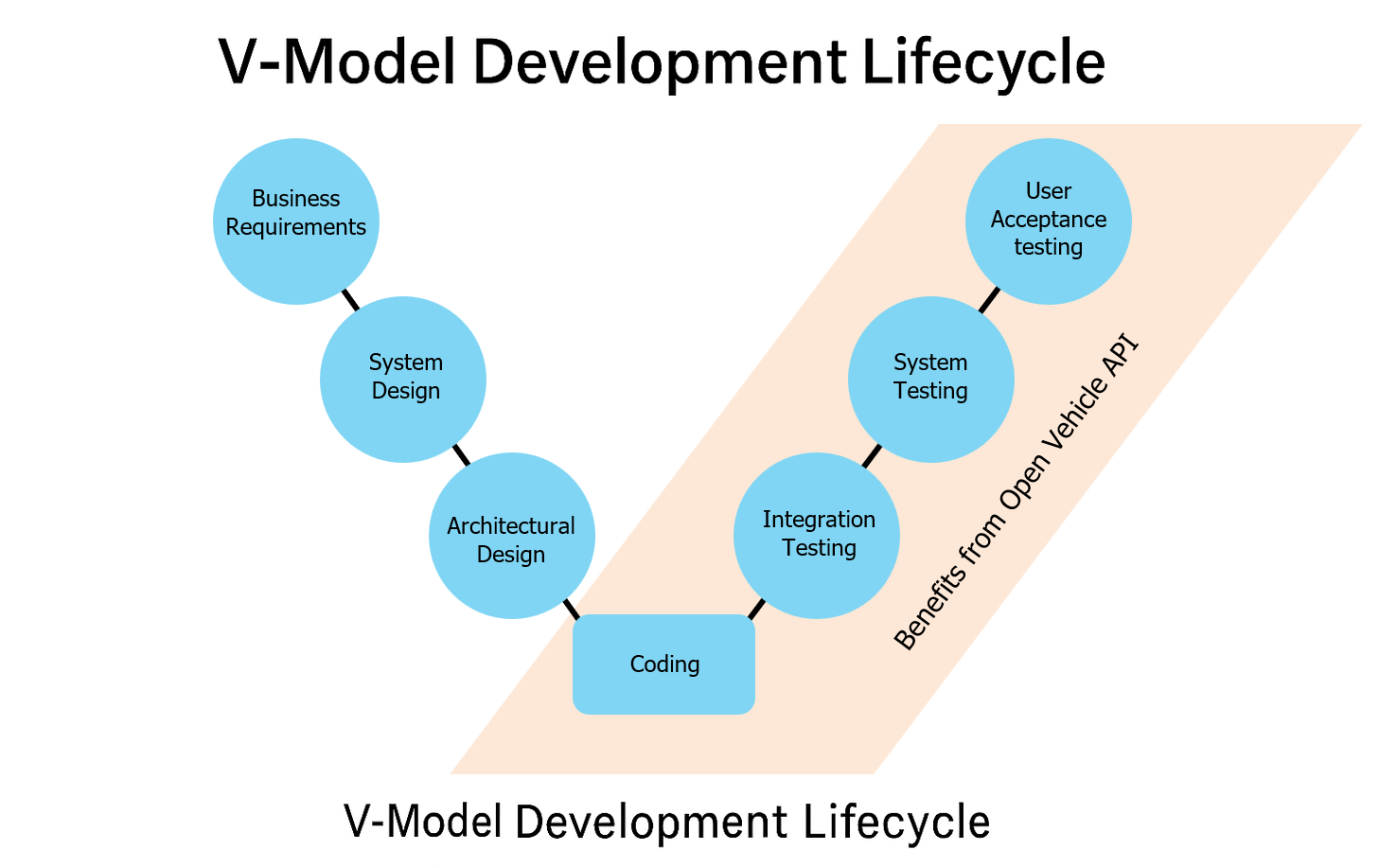

ISO 26262 is closely related to the V-Model in automotive software and system development. Here’s how they connect:

The V-Model is a structured development process that ISO 26262 uses to organize and align safety activities across the lifecycle. Here’s how the phases map:

🔹 Left Side of the V (Development)

• Concept Phase → Hazard Analysis and Risk Assessment (HARA)

• System Design → Functional Safety Concept

• Architectural Design → Technical Safety Requirements

• Module Design & Implementation → Software Safety Requirements

🔹 Right Side of the V (Testing & Validation)

• Unit Testing → Verifies software components

• Integration Testing → Verifies interaction between components

• System Testing → Verifies system-level safety requirements

• Acceptance Testing → Confirms safety goals are met

Each development phase has a corresponding verification activity, ensuring safety is built in and validated at every step.

The question arises: how can the ‘Open Vehicle API’ increase safety and supporting ISO 26262 while simultaneously reducing development time?”

This will be achieved by

• Impact Reduction (smaller components, reusing already tested components)

• Increase detection (test single component in multiple systems as test systems will grow over time).

Attention

‘Open Vehicle API’ is not a tool chain. It is a framework with a concept for software development of safety and none safety relevant vehicle functions. It’s aim is to speed up the development process including continuing testing, validation and supporting the V-Model for the ISO 26262.
