Application in simulation mode#

In <outputfolder>/examples/bin start the application with following parameter: sys_demo_example -f../../bin --simulate.

The path is the path to the VAPI Framework binaries e.g. sdv_control.

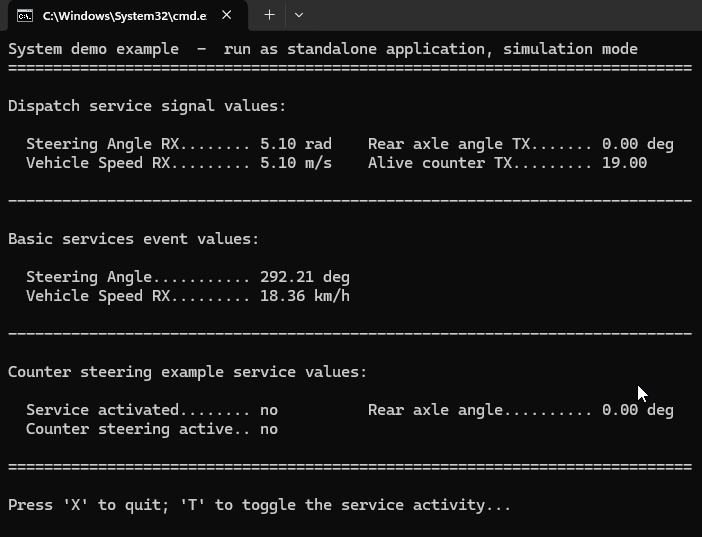

../../../_images/system_demo_screnshot_simulation.png

First, we have the Initialization phase, where we have to load the required components. During loading of the components, the core system is in configuration mode. That means, the components are loaded and configured. After every component is loaded, we have to switch to running mode.

The example in simulation mode does not load the Data Link, therefore there are no signals. In this case, we have to create them (registering) in the dispatch service and before shutdown to reset them.

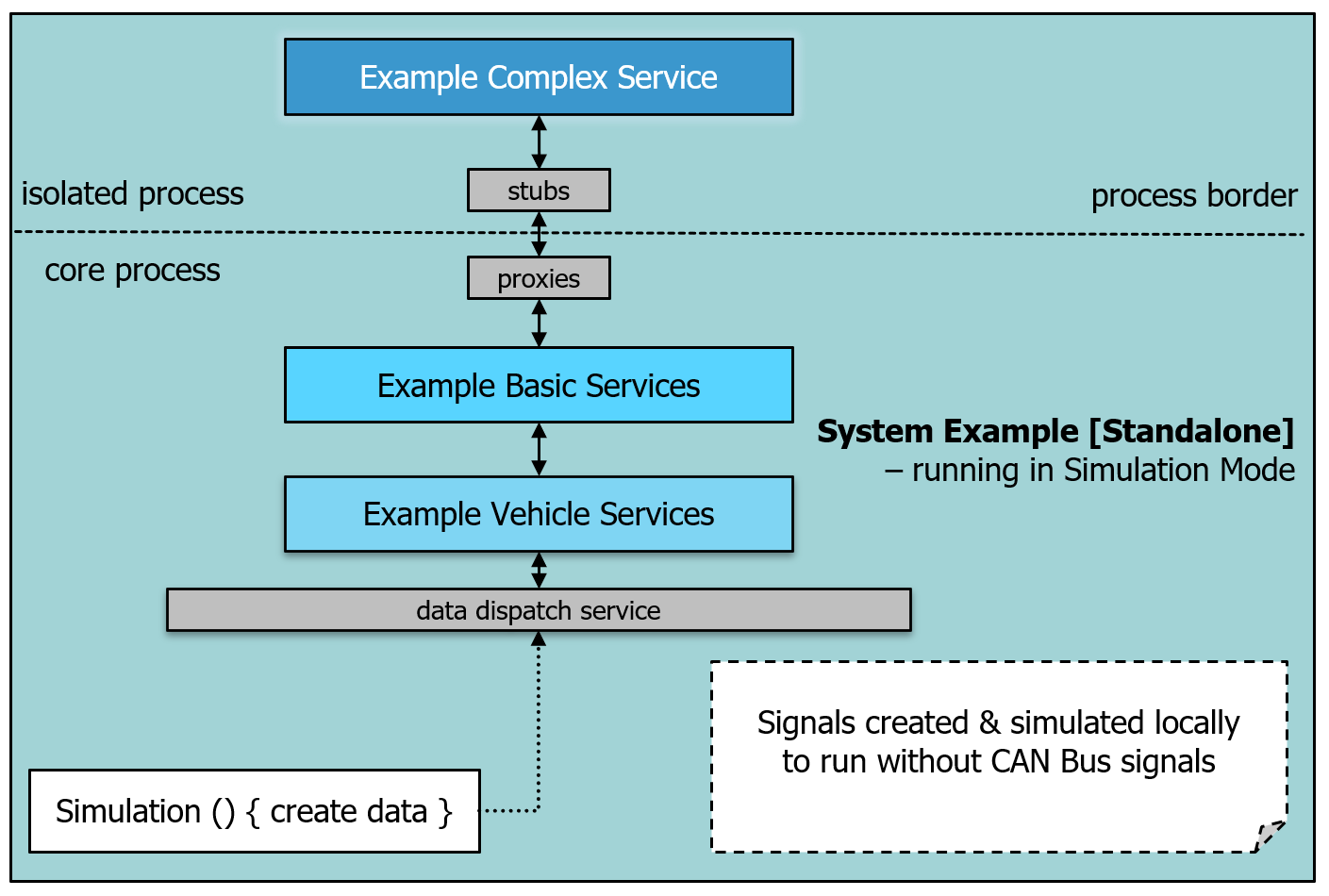

../../../_images/system_demo_simulation_mode.png

After test-run we have to unregister the signals for a graceful shutdown.

@startuml skinparam BackgroundColor #A2D3D6 Participant "Example Application" as EA #00A7AB Participant "CExample Control (Utility)" as EC #00A7AB Participant "CAppControl" as AC #BFBFBF EA->EC : CExampleControl::StartTestRun() activate EC #00A7AB EC->EC : Switch to simulation mode (Can't Load further services) EC->EC : Test Run Starts EC-->EA deactivate EC EA->EC : CExampleControl::StopTestRun() activate EC #00A7AB EC->EC : Test Run Stops EC-->EA deactivate EC EA->EC : CExampleControl::ResetSignalsSimDatalink() activate EC #00A7AB EC->EC : Reset simulated signals EC-->EA deactivate EC EA->EC : CExampleControl::Shutdown() activate EC #00A7AB EC->AC : CAppControl::Shutdown() activate AC #BFBFBF AC->AC : Shutdown the application AC-->EC deactivate AC #BFBFBF EC-->EA deactivate EC @enduml

Shutdown sequence#
