Vehicle Abstraction Example#

Attention

To demonstrate the independence of the vehicle-function implementation from the underlying vehicle platform.

Note

Example can be found in <output-folder>/examples/bin:
vehicle_abstraction_example

Hint

The Vehicle Function will show the speed value on different levels of the component stack:

  • The user can select between 2 different asc files. The first contains the CAN messages for the speed in km/h, the other in m/S unit.

  • The data shown via dispatch service is either in km/h or m/s.

  • The second component is the platform abstraction. There are 2 components in the example. Both have the same interface as output: speed in km/h. Therefore one component needs to convert the data, the other component can pass the data directly.

  • There is only one sensor component necessary as both platform abstraction components offer the speed in km/h.

  • Vehicle 1 would have the platform abstraction in km/m, vehicle 2 would need the component which converts from m/s to km/h.

  • A vehicle function requiring the speed in km/h would run on both vehicles and would not need to have any logic for the input data.

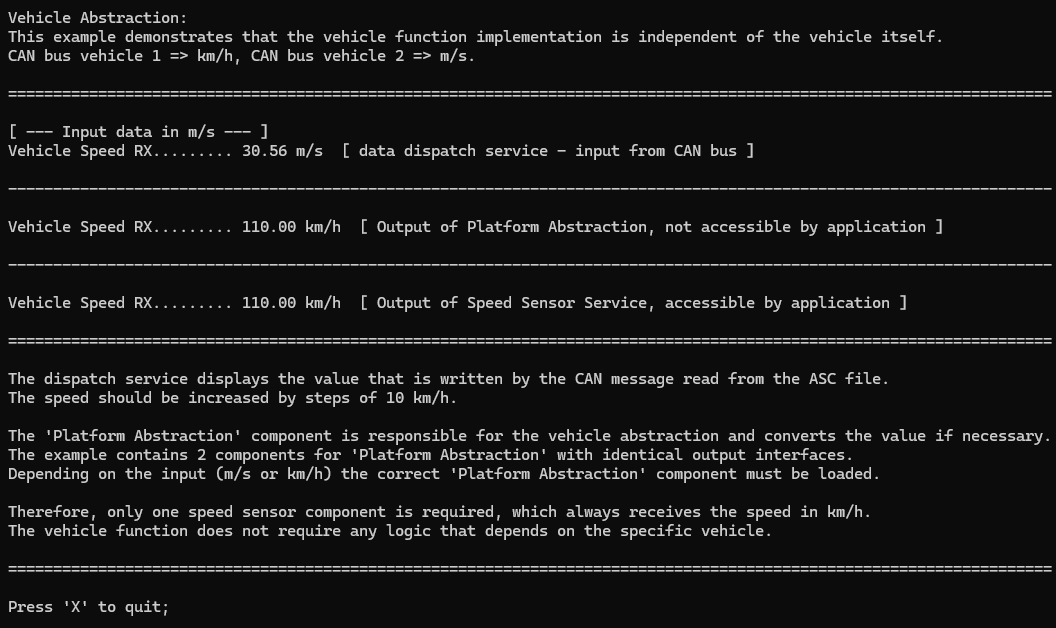

../../../_images/vehicle_abstraction_screenshot.png
Enum EObjectType:#

sdv::EObjectType

ID

Main category

Sub category

Note

::undefined

0

Not defined

::system_object

1

System object

::device

::platform_abstraction

::vehicle_bus

10

11

12

Device category 10..19

Platform abstraction

Vehicle bus abstraction

::basic_service

::sensor

::actuator

20

21

22

Basic service category 20 - 29

Sensor object

Actuator object

::complex_service

::vehicle_function

30

31

Complex service category 30 - 39

Vehicle function

Runs in isolated mode

Runs in isolated mode

::application

50

Application

::proxy

::stub

100

101

Proxy object

Stub object

::utility

1000

Utility object

See also

The different component types: Enum EObjectType

See the auto generated code in ..examples/vehicle_abstraction_example/generated

You will find 2 components: the platform abstraction component in folder vd_vehiclespeedkmh and the sensor device in folder bs_vehiclespeed.

The auto generated code in ..examples/vehicle_abstraction_example/generated2 contains only the second platform abstraction component vd_vehiclespeedms. This component has to convert the input data from m/s to km/h. The output interface is identical to the first component.

Hint

Compare the content of vehicle_abstraction_example.csv and vehicle_abstraction_example_ms.csv

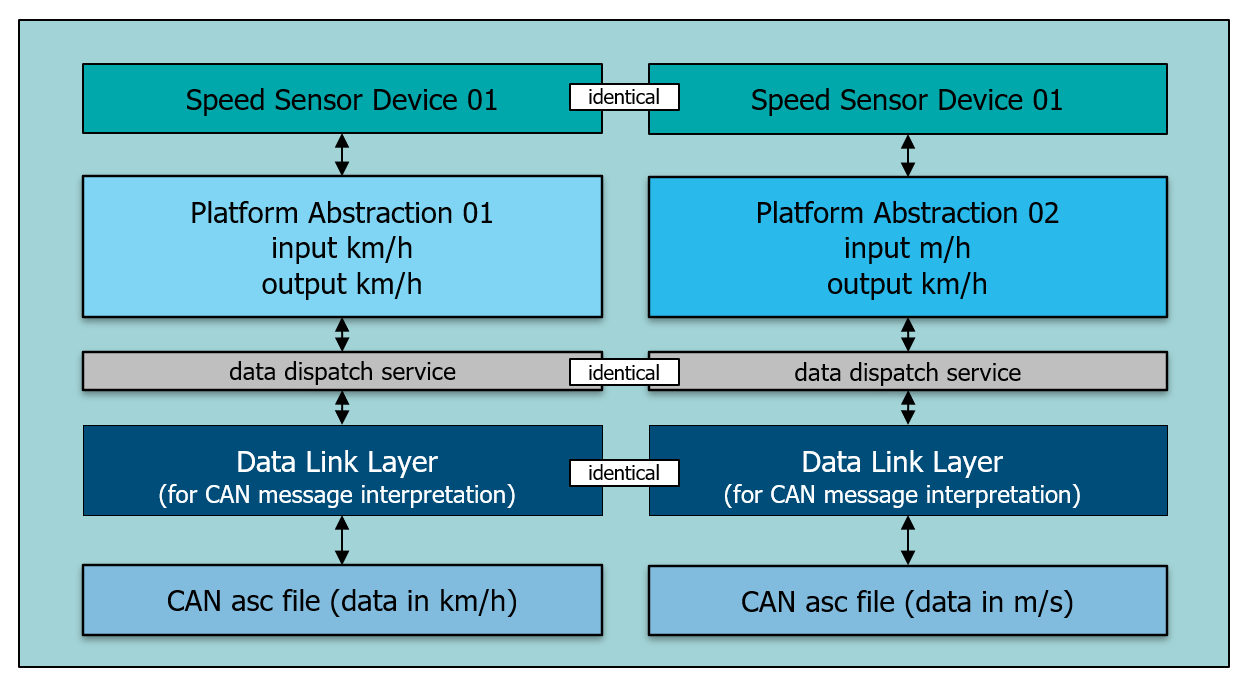

../../../_images/vehicle_abstraction_overview.png
