ELK VertiFlex
| Property | Value |
|---|---|
| Identifier: | org.eclipse.elk.vertiflex |
| Meta Data Provider: | options.VertiFlexMetaDataProvider |
Description
Tree layout algorithm that allows defining set vertical positions for nodes rather than automatically placing nodes on levels according to their topology.
Category: Tree
Specialized layout methods for trees, i.e. acyclic graphs. The regular structure of graphs that have no undirected cycles can be emphasized using an algorithm of this type.
Supported Graph Features
| Name | Description |
|---|---|
| Multi Edges | Multiple edges with the same source and target node. |
| Edge Labels | Labels that are associated with edges. |
Additional Documentation
Vertiflex is a special tree drawing algorithm that diverges from the classic aesthetic constraint that requires nodes to be assigned to discrete layers. Instead each node may now come with its own defined height constraint. Nodes that do not define their own height constraint are assigned a location based on the defined spacings and the other nodes in the graph.

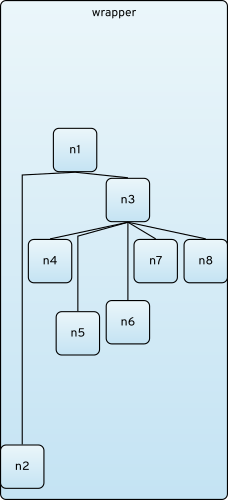

The wrapper node in the example illustrates the vertical constraints. The node n1 has a vertical constraint of 115 (see ELK’s coordinate system. The node’s n4, n7 and n8 have no vertical constraint and are placed below n3 to satisfy the specified node node spacing.
Supported Options
| Option | Default Value |
|---|---|
| Consider node model order | true |
| Edge layout strategy | EdgeRoutingStrategy.STRAIGHT |
| Fixed vertical position | <not defined> |
| Inline Edge Labels | false |
| Interactive | false |
| Layer distance | 50.0 |
| Margins | new ElkMargin() |
| Node Spacing | 20 |
| Omit Node Micro Layout | false |
| Padding | new ElkPadding(5) |
| Port Constraints | PortConstraints.UNDEFINED |
